Product Description

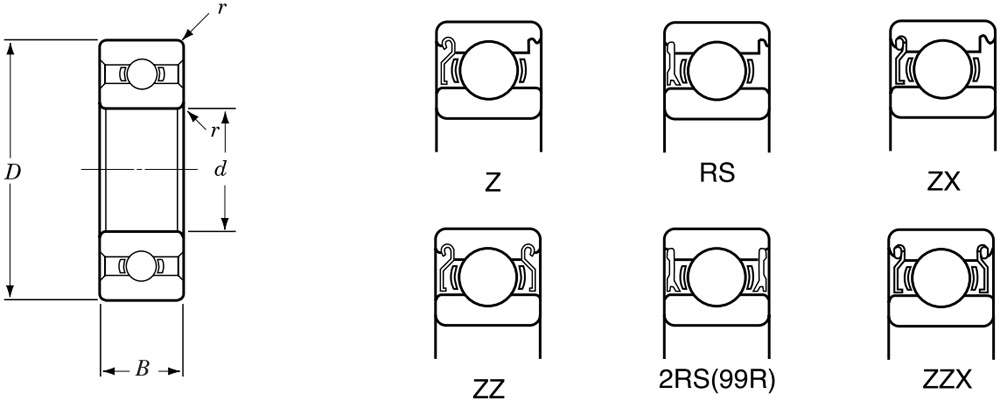

| Bearing No. | Main Dimension (mm) | Load Rating (KN) | Max Runout Speed | Weight (kg) | |||||||
| Bore | Outer Diameter | Width | Radius | Dynamic | Static | Grease | Oil | ||||
| d | D | B | r | ||||||||
| r/min | r/min | ||||||||||
| min | |||||||||||
| 685 | 5 | 11 | 3 | 0.15 | 0.637 | 0.255 | 61000 | 75000 | 0.001 | ||
| 686 | 6 | 13 | 3.5 | 0.15 | 0.830 | 0.390 | 55000 | 67000 | 0.002 | ||
| 687 | 7 | 14 | 3.5 | 0.15 | 0.901 | 0.441 | 52000 | 63000 | 0.002 | ||
| 688 | 8 | 16 | 4 | 0.20 | 1.029 | 0.539 | 45000 | 56000 | 0.003 | ||
| 689 | 9 | 17 | 4 | 0.20 | 1.078 | 0.588 | 41000 | 53000 | 0.003 | ||
| 6800 | 10 | 19 | 5 | 0.30 | 2.120 | 0.985 | 37000 | 44000 | 0.005 | ||
| 6801 | 12 | 21 | 5 | 0.30 | 1.920 | 1.040 | 32000 | 39000 | 0.006 | ||
| 6802 | 15 | 24 | 5 | 0.30 | 2.080 | 1.260 | 28000 | 34000 | 0.007 | ||
| 6803 | 17 | 26 | 5 | 0.30 | 2.630 | 1.470 | 26000 | 30000 | 0.008 | ||
| 6804 | 20 | 32 | 7 | 0.30 | 4.020 | 2.640 | 22000 | 26000 | 0.018 | ||
| 6805 | 25 | 37 | 7 | 0.30 | 4.300 | 2.940 | 18000 | 22000 | 0.022 | ||
| 6806 | 30 | 42 | 7 | 0.30 | 4.450 | 3.800 | 15000 | 18000 | 0.026 | ||
| 6807 | 35 | 47 | 7 | 0.30 | 4.750 | 4.130 | 14000 | 17000 | 0.030 | ||
| 6808 | 40 | 52 | 7 | 0.30 | 4.950 | 4.900 | 12000 | 14000 | 0.033 | ||
| 6809 | 45 | 58 | 7 | 0.30 | 5.350 | 4.900 | 11000 | 13000 | 0.040 | ||
| 6810 | 50 | 65 | 7 | 0.30 | 6.400 | 5.800 | 10000 | 11000 | 0.052 | ||
| 695 | 5 | 13 | 4 | 0.20 | 0.720 | 0.390 | 53000 | 67000 | 0.002 | ||
| 696 | 6 | 15 | 5 | 0.20 | 1.120 | 0.590 | 50000 | 63000 | 0.004 | ||
| 697 | 7 | 17 | 5 | 0.30 | 1.568 | 0.784 | 45000 | 56000 | 0.005 | ||
| 698 | 8 | 19 | 6 | 0.30 | 1.720 | 0.864 | 40000 | 50000 | 0.007 | ||
| 699 | 9 | 20 | 6 | 0.30 | 1.325 | 0.694 | 38000 | 48000 | 0.008 | ||
| 6900 | 10 | 22 | 6 | 0.30 | 2.490 | 1.370 | 33000 | 38000 | 0.009 | ||
| 6901 | 12 | 24 | 6 | 0.30 | 2.700 | 1.235 | 22000 | 28000 | 0.011 | ||
| 6902 | 15 | 28 | 7 | 0.30 | 2.639 | 1.320 | 30000 | 36000 | 0.016 | ||
| 6903 | 17 | 30 | 7 | 0.30 | 4.600 | 2.550 | 24000 | 29000 | 0.018 | ||
| 6904 | 20 | 37 | 9 | 0.30 | 6.350 | 3.700 | 22000 | 26000 | 0.036 | ||
| 6905 | 25 | 42 | 9 | 0.30 | 7.010 | 4.500 | 16000 | 20000 | 0.042 | ||
| 6906 | 30 | 47 | 9 | 0.30 | 7.250 | 5.010 | 14000 | 17000 | 0.048 | ||
| 6907 | 35 | 55 | 10 | 0.60 | 10.400 | 7.150 | 12000 | 15000 | 0.074 | ||
| 6908 | 40 | 62 | 12 | 0.60 | 13.700 | 9.900 | 11000 | 13000 | 0.110 | ||
| 6909 | 45 | 68 | 12 | 0.60 | 14.100 | 10.900 | 10000 | 12000 | 1.220 | ||
| 6910 | 50 | 72 | 12 | 0.60 | 14.500 | 11.700 | 9500 | 11000 | 1.250 | ||
Any combination of closures is available
