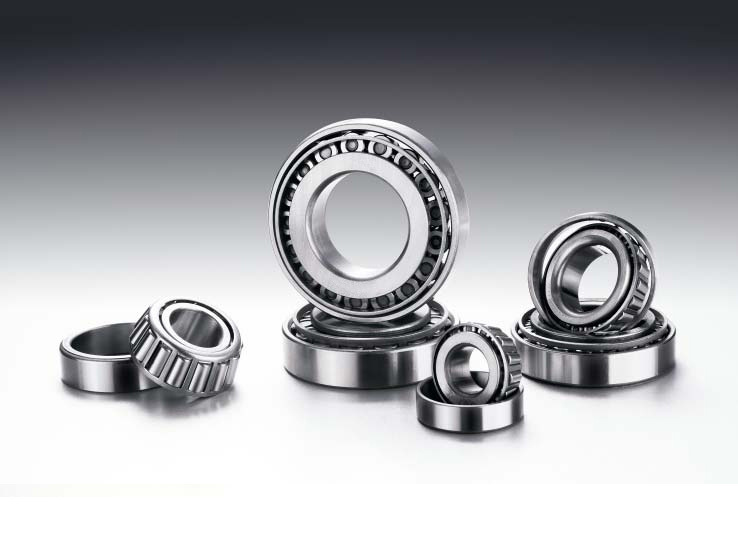

SINGLE ROW TAPER ROLLER BEARINGS, INCH SIZES
Category:
Product Description

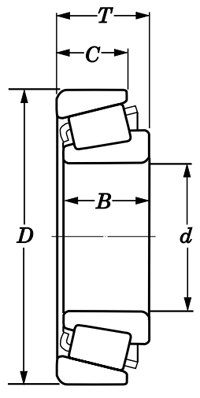

| Bearings No. | Main Dimensions(mm) | Weight (kg) | ||||||
| CONE | CUP | d | D | T | B | C | ||
| LM11749 | LM11710 | 17.462 | 39.878 | 13.843 | 14.605 | 10.668 | 0.083 | |
| LM11949 | LM11910 | 19.050 | 45.237 | 15.494 | 16.637 | 12.065 | 0.128 | |
| M12649 | M12610 | 21.430 | 50.005 | 17.526 | 18.288 | 13.970 | 0.172 | |
| LM12749 | LM12710 | 21.986 | 45.237 | 15.494 | 16.637 | 12.065 | 0.116 | |
| LM12749 | LM12711 | 21.986 | 45.974 | 15.494 | 16.637 | 12.065 | 0.121 | |
| L44643 | L44610 | 25.400 | 50.292 | 14.224 | 14.732 | 10.668 | 0.126 | |
| L44649 | L44610 | 26.988 | 50.292 | 14.224 | 14.732 | 10.668 | 0.119 | |
| L45449 | L45410 | 29.000 | 50.292 | 14.224 | 14.732 | 10.668 | 0.113 | |
| LM67048 | LM67010 | 31.750 | 59.131 | 15.875 | 16.764 | 11.811 | 0.168 | |
| M88048 | M88010 | 33.338 | 68.262 | 22.225 | 22.225 | 17.463 | 0.378 | |
| LM48548 | LM48510 | 34.925 | 65.088 | 18.034 | 18.288 | 13.970 | 0.257 | |
| L68149 | L68110 | 34.988 | 59.131 | 15.875 | 16.764 | 11.938 | 0.17 | |
| JL69349 | JL69310 | 38.000 | 63.000 | 17.000 | 17.000 | 13.500 | 0.204 | |
| LM501349 | LM501310 | 41.275 | 73.431 | 19.558 | 19.812 | 14.732 | 0.325 | |
